What is Roll Lamination?

In the worlds of printing, publishing, and document preservation, roll lamination is a continuous, high-volume process that seals a document or material between two layers of plastic film using heat, pressure, and adhesive. Unlike pouch lamination, which uses pre-cut sheets, roll lamination feeds from large rolls of film, making it the go-to method for high-volume, large-format, or wide-format projects.

It's an industrial-grade process that transforms ordinary prints into durable, professional, and long-lasting finished products.

How It Works

The roll lamination process is efficient and mechanized, typically involving these key steps:

1. Preparation: The document to be laminated is prepared. For large-format items like banners, this often means trimming to the desired size.

2. Film Loading: Two large rolls of laminating film are loaded onto the machine—one for the top layer and one for the bottom layer.

3. Feeding: The operator feeds the leading edge of the document into the machine's intake rollers. Once gripped, the machine pulls the material through automatically.

4. Application of Heat and Pressure: As the document travels through the machine, it passes between heated rollers and pressure rollers. This combination:

   Activates the heat-sensitive adhesive (EVA or PSA) coating on the inside of the film.

   Melts the adhesive, allowing it to flow evenly.

   Presses the two film layers tightly onto both sides of the document, squeezing out any air bubbles and ensuring a perfect bond.

5. Cooling and Trimming: The newly laminated material passes through cooling rollers that solidify the adhesive, creating a permanent seal. For machines with integrated trimmers, the side edges are automatically trimmed to remove excess film, resulting in a clean, edge-to-edge finish.

6. Output: The finished, laminated product is delivered at the end of the machine, ready for use or further processing.

Key Characteristics

High Volume & Speed: Designed for continuous operation, roll laminators can process hundreds of feet of material per hour, far outpacing pouch laminators.

Large-Format Capability: This is their primary advantage. Roll laminators can handle materials from 27 inches wide to over 60 inches wide, making them essential for banners, posters, maps, and displays.

Superior Durability: The consistent heat and pressure create a stronger, more permanent bond than many pouch laminators, offering exceptional resistance to wear, tearing, moisture, and UV fading.

Variety of Finishes: Rolls are available in a wide range of finishes including Gloss, Matte, and Satin/Semi-Gloss (a popular middle-ground).

Edge-to-Edge Seal: Unlike pouches, which leave a small border, roll lamination can be trimmed to provide a perfect, seamless seal right to the edge of the document.

When to Use Roll Lamination

Choose roll lamination when you need:

Large Documents: Banners, trade show displays, posters, maps, wall graphics, and floor decals.

High-Volume Projects: Laminating a high quantity of same-sized documents, such as menus, ID cards, or educational materials for an entire school.

Maximum Durability: For items that will be subjected to heavy handling, outdoor elements, or need to last for many years (e.g., architectural plans, important signs, protective barriers).

Professional Finish: To give retail signage, restaurant menus, or gallery prints a high-quality, professional, and protected finish.

Wide Materials: Laminating rolls of material themselves, such as fabric or paper, for use in crafting or other industrial applications.

Types of Roll Laminating Machines

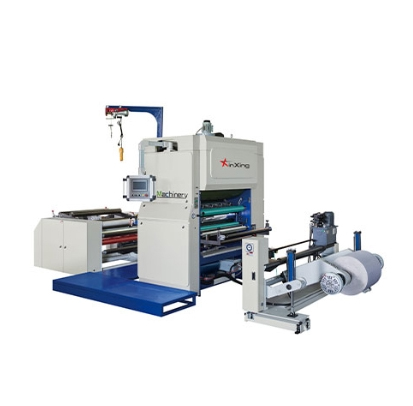

1. Roll to Roll Laminating Machine

Xinxing Roll to Roll Laminating Machine (Model ZFM-1100J) boasts shaftless unwinding (3/6-inch cores), glue-saving double metal rolls (3-4g/m²), dual electromagnetic-oil heating & ultrasonic guide. It supports max 1050mm width, 80-100m/min speed, with 10-inch PLC + full pneumatic control for easy stability. Ideal for book covers/gift boxes/handbags, delivering durable protection & nice presentation.

2. Hot Roll Laminating Machine

SKFJ-350 Hot Roll Laminating Machine features a max laminating width of 350mm, can be adapted to paper with a thickness of 80~500g/㎡, and has a laminating speed range of 0-60m/min as well as a gross power of 15KW. It can provide durable protection for books, book covers, gift boxes and handbags, while helping to enhance the presentation effect of these products.

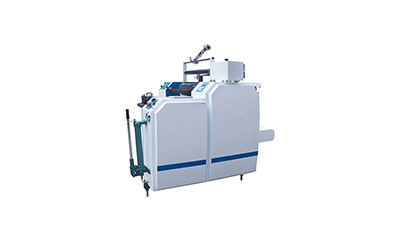

3. Reel laminating machine

SKFJ-500 Roll-to-Roll Laminating Machine: Max. laminating width 500mm, fits paper thickness 80~500g/sqm, laminating speed 0-70m/min, total power 15kW, unwinder diameter 600mm, rewinder diameter 660mm, overall dimensions 150013001400mm, weight 600kg, with durable and protective performance.

Summary

Roll lamination is a versatile and effective finishing process that enhances the durability, appearance, and protection of printed materials. By understanding how it works, its key characteristics, when to use it, and the different types of machines available, you can choose the right lamination solution for your specific project needs.

FAQ

Q1: What is the difference between roll lamination and pouch lamination?

• Roll Lamination: Uses rolls of film, is continuous, handles large formats and high volumes, and is generally more durable. It's for professional/commercial use.

• Pouch Lamination: Uses pre-cut plastic pouches, is a batch process, handles smaller documents (like letter or A4 size), and is designed for low-volume, office, or personal use.

Q2: What thickness (mil) can I achieve with roll lamination?
You can achieve a much wider range of thicknesses. By combining film layers and using thicker films, you can create finishes from standard 3mil up to very rigid 20mil+ for items like permanent signage or plastic cards.

Q3: Can I laminate sensitive documents or photos?
Yes, but you must choose the right film. For modern inkjet prints or delicate materials, use a cold laminator with PSA film to avoid heat damage like warping or melting the ink.

Q4: Is roll lamination environmentally friendly?
The plastic films (typically PET or OPP) are not biodegradable. However, many are recyclable (check with local recycling programs). The industry is also moving toward more bio-based and recyclable film options.
